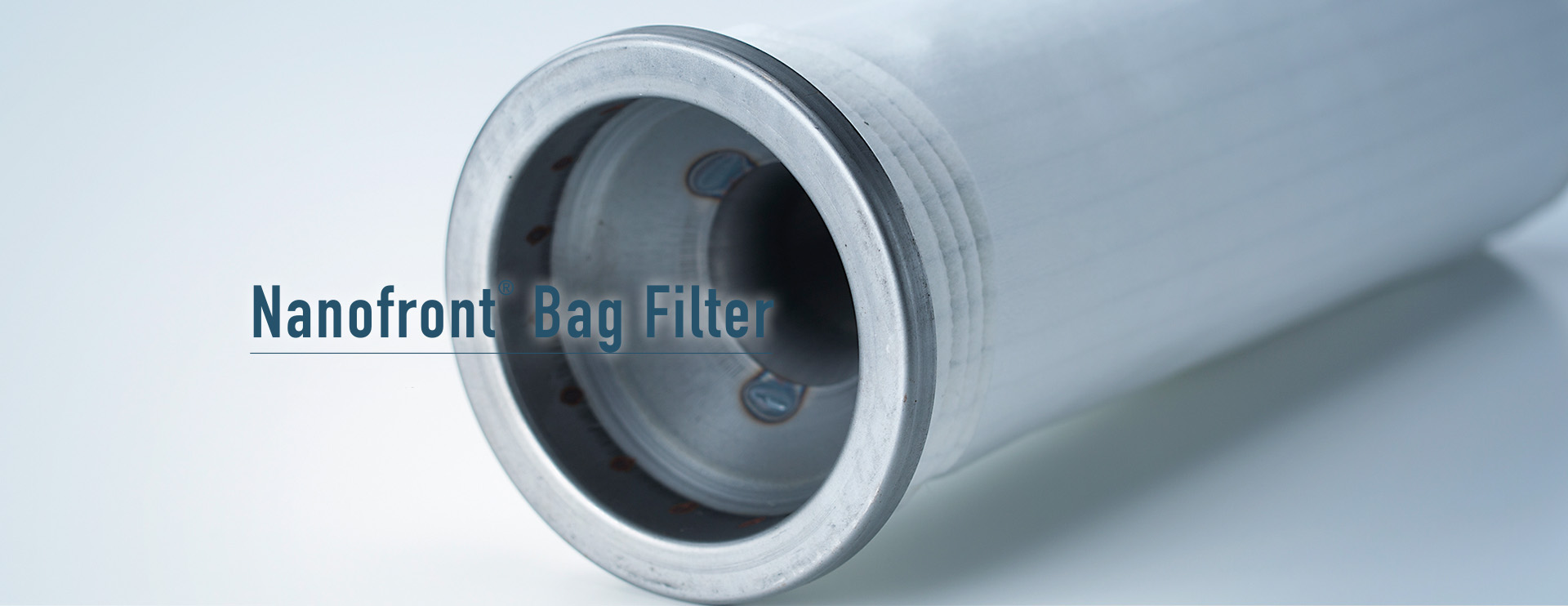

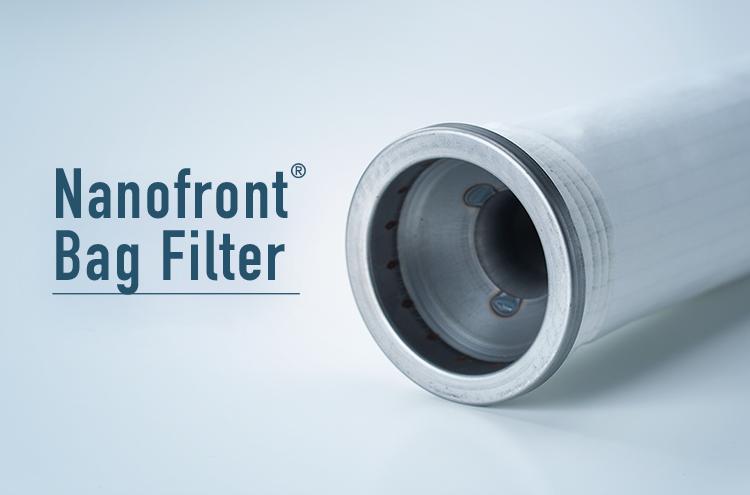

Nanofront® Bag Filter | TEIJIN FRONTIER CO.,LTD.

Feature of Nanofront® felt

In 2008, Teijin began the commercial manufacturing of the world's first polyester ultra-fine fiber with a diameter of 700 nm under the brand name Nanofront®. Using this extraordinary fiber, the Nanofront® bag filter shows remarkable performance.

Point 01

Remarkable collection efficiency

Ultra-fine polyester fiber realizes structure with fine pore size, resulting in highly efficient collection.

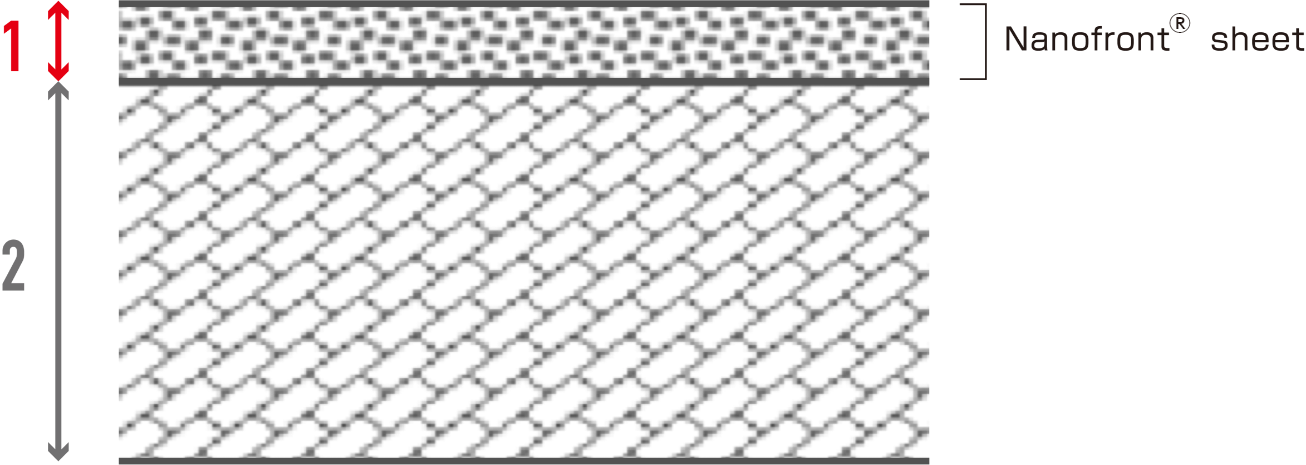

Other filter media are mixed to form optimal gaps, which realize remarkable collection and minimize pressure loss, also making the filter efficient for saving energy.

Point 02

Catches dust in the surface, preventing the filter from clogging up.

The fine pore size of Nanofront® prevents dust from penetrating into the inner layer, allowing a dust cake to form. As a result, the filter maintains high collection efficiency with minimal pressure loss.

■Comparison of cross section image after usage

Ordinary polyester felt

Polyester felt laminated with Nanofront® sheet

Point 03

Energy-saving and durable. Catches powder dust efficiently to suppress emissions and reduce environmental impact, increasing productivity when manufacturing fine particle products.

Filter performance test

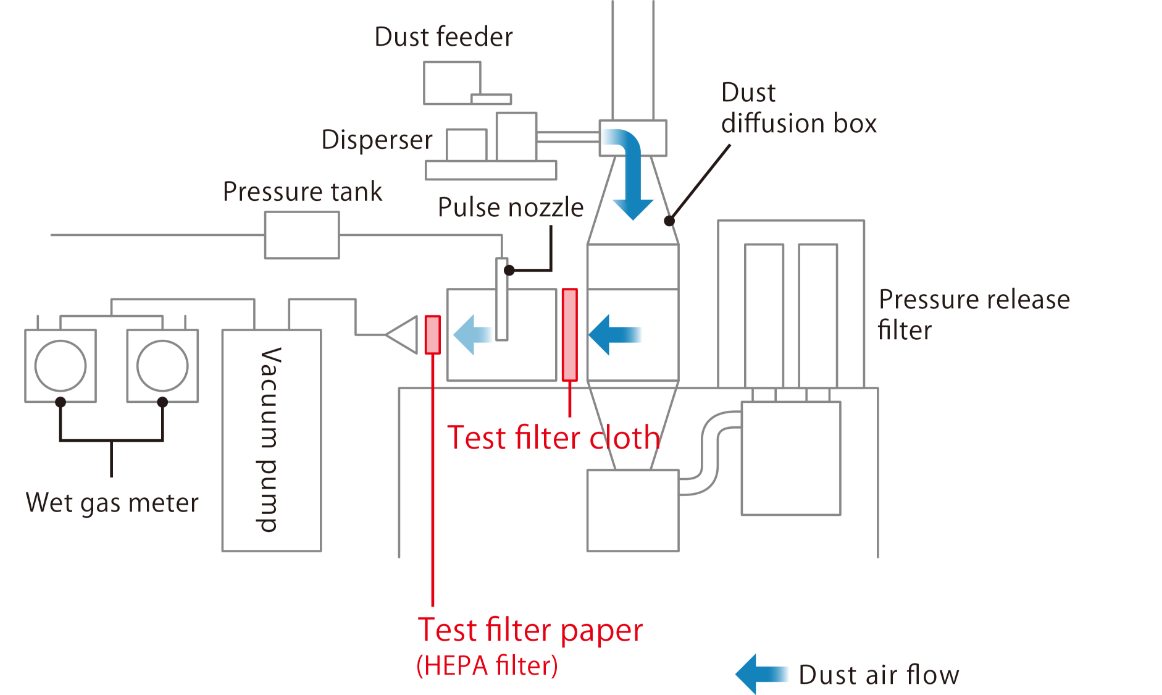

■JIS test equipment

In March 2017, Teijin established an equivalence test facility compliant with VDI (European standard) and GB (Chinese standard) within our research center in Nantong, Jiangsu in China.

■Test condition: JISZ 8909-1 compliant

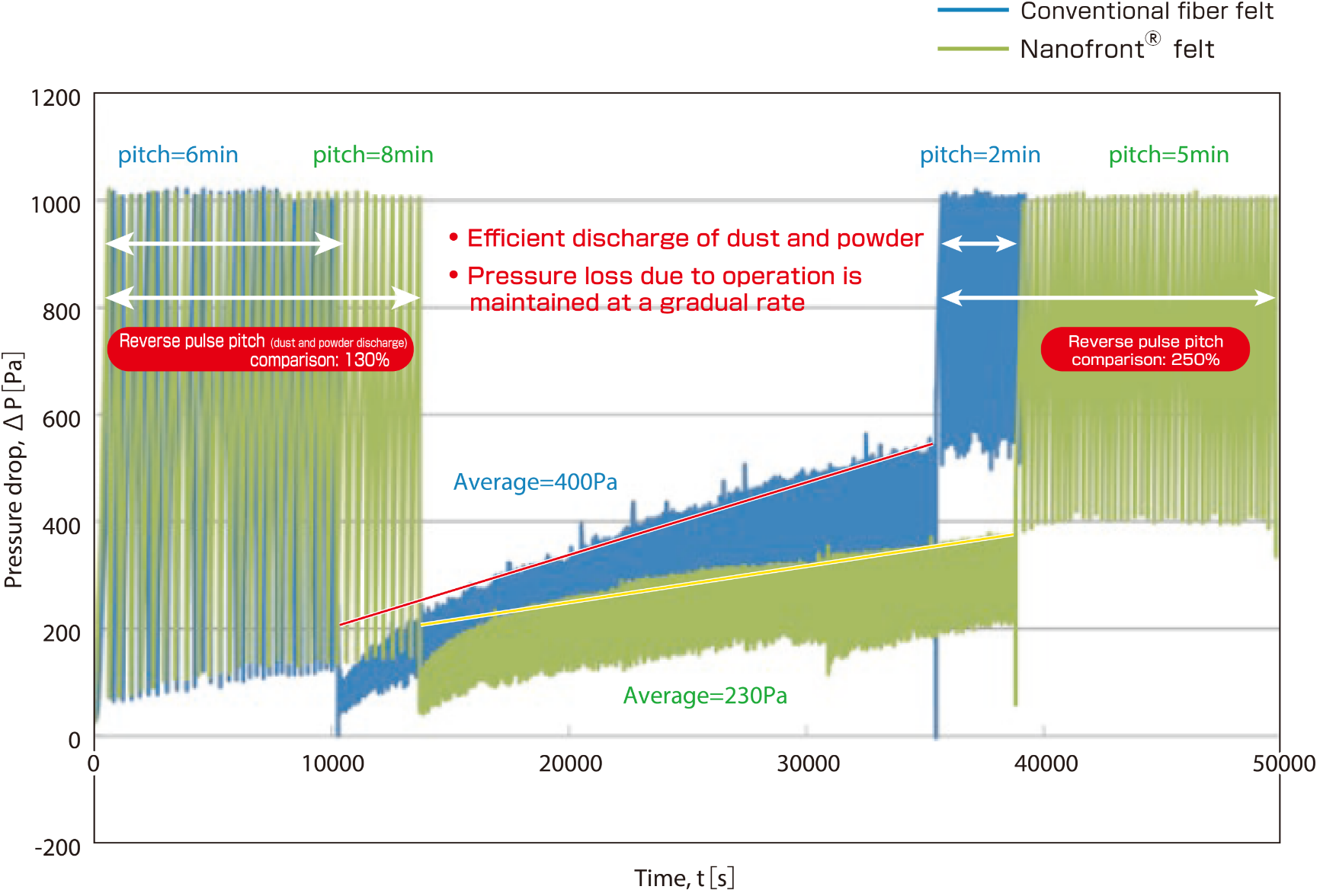

■Performance test result
